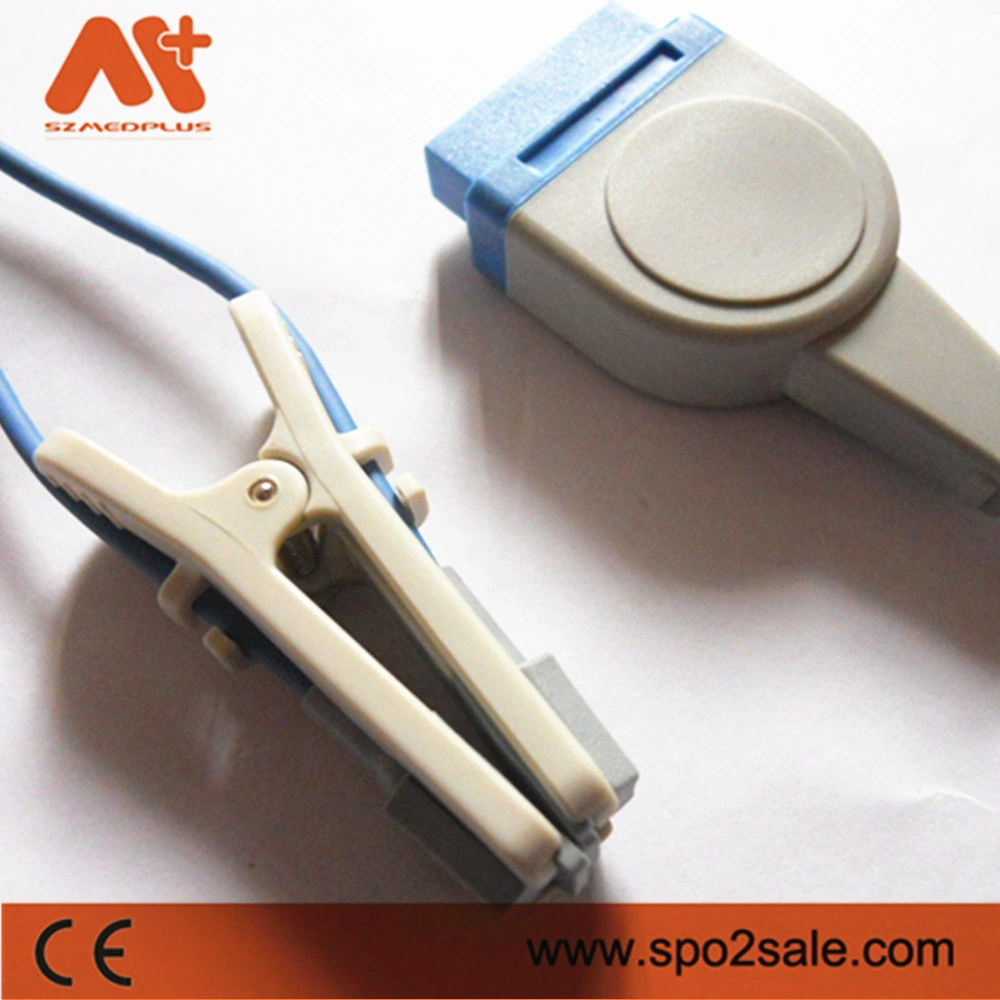

Reusable Adult Ear Clip SpO2 Sensor for Ge Ohmeda Compatible Ts-E4-Ge
OEM:
Datex Ohmeda: TS-E4-GE
Compatibilities:
Datex Ohmeda: i4 with E-series modules, S/5
Connector guide: 11 Pin
Technical Specifications:
All type sensors:
What is spo2?
SpO2 is a measurement of the amount of oxygen attached to the haemoglobin cell in the circulatory system. Put simpler, it is the amount of oxygen being carried by the red blood cell in the blood. SpO2 is given in as a percentage, normal is around 96%. The "S" stands for saturation.
Very simply: SpO2 Goes up and down according to how well a person is respiring (breathing) and how well the blood is being pumped around the body, however, like most things in physiology it is more complicated than this.
This information is provided as an aid to understanding medical lingo and in no way replaces proper training.
How to test a SpO2 sensor without those expensive equipment(like Spo2 Analyzers or similar)?
You can use a simple multimeter to check the pins of Spo2 sensors' connector, to get the configuration of it,
In it, two pins are for detector and 3 for I.R and L.E.D, You put your meter of resistance option and check, on L.E.D checking it also blink the red light, on the others, it will show only 0.666, something like that.
Cleaning step:
1, Turn off the oximeter before cleaning.
2, Wipe exposed surfaces with a soft cloth or a pad moistened with a mild detergent solution or medical alcohol (70% isopropyl alcohol solution)
3, Clean inside of the elastic thimble and two optical elements with a cotton swab or equivalent moistened with a mild detergent solution or medical alcohol (70% isopropyl alcohol solution), Ensure without dirt or blood.
Attention:
1, Keep the sensor dry before using. The rubber inside of the Spo2 sensor belongs to medical rubber, which has no toxin and no harmful to the skin of human being. Spo2 Sensors can be cleaned and disinfected with same solutions.
2, Replace the batteries timely when battery indication is low. Please follow the law of the local government to deal with used battery.
3, Remove the batteries from the battery cassette if the Oximeter will not be operated for a long time.
4, Recommended that keep the oximeter in a dry environment anytime. A wet ambient might affect its lifetime and even might damage the oximeter
Caution: Do not spray, pour, or spill any liquid on the oximeters, their accessories, switches or openings.
Payment:
Transportation Methods:
warranty:
1, Reusable spo2 sensors are carried 12 months warranty to repair for free due to the quality problems since ex-factory;
2, ECG cable and leadwires, spo2 adapter cable, EKG cable are carried 6 months for free (excluding disposable spo2 sensor), but including the misuse, negligence or accidents causing from the buyer.
Return:
For all warranty return items, prior authorization to return merchandise must be obtained by contacting SZMEDPLUS. If the items are not covered under warranty, customer is responsible for all shipping fee 25% restocking fee.
Contact information:
Company:Shenzhen Medplus Accessory Co.,LTD
Contact: Jenie Wei
OEM:
Datex Ohmeda: TS-E4-GE
Compatibilities:
Datex Ohmeda: i4 with E-series modules, S/5
Connector guide: 11 Pin
Technical Specifications:
| LED | Red | 660nm normal |
| LED Wavelength | 660nm/905nm | |
| Text Range | Oxygen Saturation(%SpO2) | 0% to 100% |
| Pulse Rate(bpm) | 30 to 245 | |
| Accuracy | SpO2 | ±1%(90~100%) |
| ±2%(80~90%) | ||
| ±3%(below 70%) | ||
| Pulse Rate | ±2bpm(30-250bpm) | |
| Storage and Transport Environment | -10ºC~+40ºC | |
| Operating Temperature | ±5ºC~+40ºC | |
| Operating/Storage/Transportation Humidity | 0%-80% | |
| Hyperbaric Pressure | 86kPa-106kPa | |
All type sensors:
| P/N | Description | Connector Imagine |
| MPS093A | GE Ohmeda adult finger clip spo2 sensor,10ft |  |
| MPS093B | GE Ohmeda adult soft tip spo2 sensor,10ft | |
| MPS093C | GE Ohmeda pediatric finger clip spo2 sensor,10ft | |
| MPS093D | GE Ohmeda pediatric soft tip spo2 sensor,10ft | |
| MPS093E | GE Ohmeda neonate wrap spo2 sensor,10ft | |
| MPS093F | GE Ohmeda adult ear clip Spo2 sensor.10ft | |
| MPS093G | GE Ohmeda animal tongue Spo2 sensor,10ft | |
| MPS093H | GE Ohmeda Multi-site Y type spo2 sensor,10ft | |
| MPS093I | GE Ohmeda Infant soft tip spo2 sensor, 10ft | |
| MPS093J | GE Ohmeda Multi-site Y type with foam,10ft | |
| MPS093K | GE Ohmeda Multi-site clip spo2 sensor, 10ft |
What is spo2?
SpO2 is a measurement of the amount of oxygen attached to the haemoglobin cell in the circulatory system. Put simpler, it is the amount of oxygen being carried by the red blood cell in the blood. SpO2 is given in as a percentage, normal is around 96%. The "S" stands for saturation.
Very simply: SpO2 Goes up and down according to how well a person is respiring (breathing) and how well the blood is being pumped around the body, however, like most things in physiology it is more complicated than this.
This information is provided as an aid to understanding medical lingo and in no way replaces proper training.
How to test a SpO2 sensor without those expensive equipment(like Spo2 Analyzers or similar)?
You can use a simple multimeter to check the pins of Spo2 sensors' connector, to get the configuration of it,
In it, two pins are for detector and 3 for I.R and L.E.D, You put your meter of resistance option and check, on L.E.D checking it also blink the red light, on the others, it will show only 0.666, something like that.
Cleaning step:
1, Turn off the oximeter before cleaning.
2, Wipe exposed surfaces with a soft cloth or a pad moistened with a mild detergent solution or medical alcohol (70% isopropyl alcohol solution)
3, Clean inside of the elastic thimble and two optical elements with a cotton swab or equivalent moistened with a mild detergent solution or medical alcohol (70% isopropyl alcohol solution), Ensure without dirt or blood.
Attention:
1, Keep the sensor dry before using. The rubber inside of the Spo2 sensor belongs to medical rubber, which has no toxin and no harmful to the skin of human being. Spo2 Sensors can be cleaned and disinfected with same solutions.
2, Replace the batteries timely when battery indication is low. Please follow the law of the local government to deal with used battery.
3, Remove the batteries from the battery cassette if the Oximeter will not be operated for a long time.
4, Recommended that keep the oximeter in a dry environment anytime. A wet ambient might affect its lifetime and even might damage the oximeter
Caution: Do not spray, pour, or spill any liquid on the oximeters, their accessories, switches or openings.
Payment:
Transportation Methods:
warranty:
1, Reusable spo2 sensors are carried 12 months warranty to repair for free due to the quality problems since ex-factory;
2, ECG cable and leadwires, spo2 adapter cable, EKG cable are carried 6 months for free (excluding disposable spo2 sensor), but including the misuse, negligence or accidents causing from the buyer.
Return:
For all warranty return items, prior authorization to return merchandise must be obtained by contacting SZMEDPLUS. If the items are not covered under warranty, customer is responsible for all shipping fee 25% restocking fee.
Contact information:
Company:Shenzhen Medplus Accessory Co.,LTD
Contact: Jenie Wei
